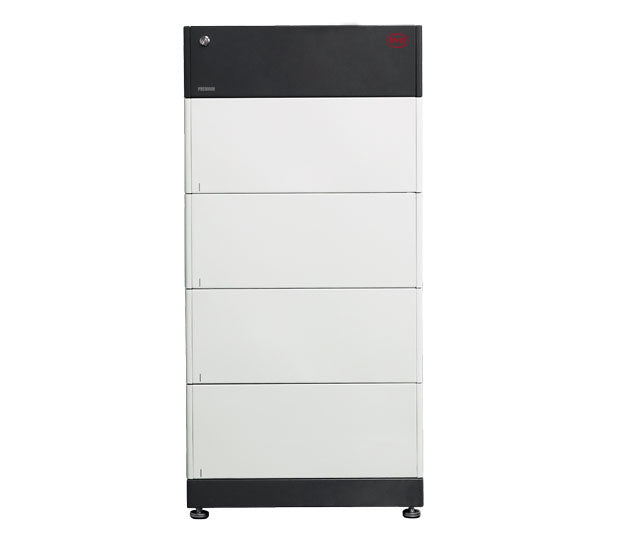

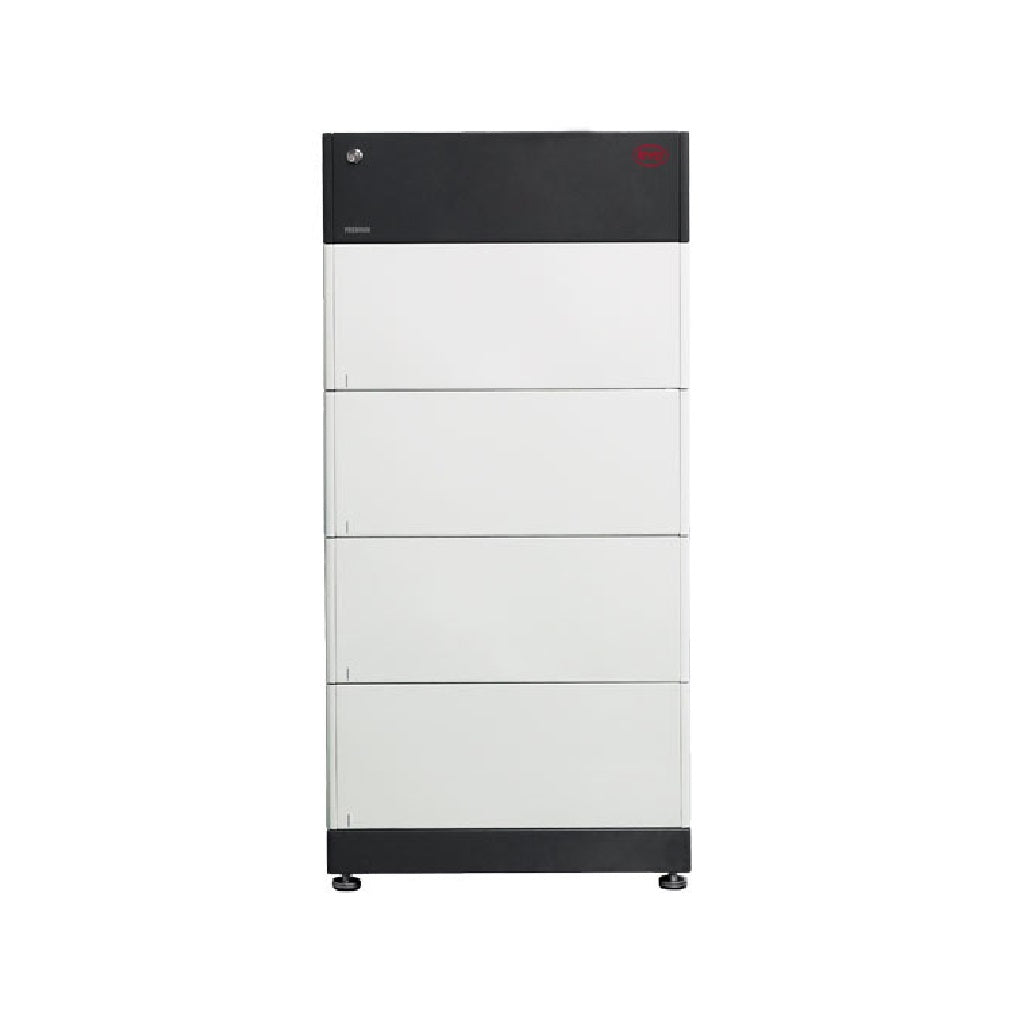

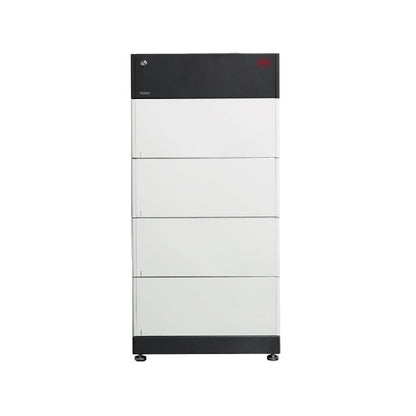

BYD B-BOX PREMIUM HVS 5.1 (5.12 kWh) - 12.8 (12.8 kWh)

Battery-Box HVS (high-voltage lithium-ion battery storage)

The Battery-Box Premium HVS is the new generation of BYD battery storage and offers not only all the features of its predecessor but also greater storage capacity . Thanks to advanced cell technology, the weight has been reduced by almost 30 percent and the installation depth by 8 cm, giving the new battery storage system a sleeker appearance and requiring less space.

Furthermore, the new battery storage has protection class IP55 .
This means that the BYD B-Box Premium HVS can also be used outdoors.

Flexible and scalable

Since the BYD battery is modular , the storage capacity can be subsequently increased in 2.56 kWh increments.

You can now connect up to three battery towers to a system . Each battery is capable of delivering the rated capacity as power, i.e., 1C. This makes the new BYD product series well-suited for on-grid and on-grid plus backup systems, as well as off-grid systems.

The BYD Battery-Box Premium HVS is compatible with leading single-phase and three-phase inverters.

Emergency power supply

While power outages are fortunately very rare in Germany, they cannot be completely ruled out. To avoid being left sitting in the dark, a B-Box can help bridge the power outage. Many companies are also required to have a complex emergency power supply. BYD batteries can often provide relief here, too. This is particularly effective thanks to the B-Box's exceptionally high discharge capacity.

Advantages

• All models of the Battery-Box Premium series meet the VDE 2510 safety standard and have additional safety features for installation.
• All models are designed for powerful emergency power supply and are suitable for both on- and off-grid use with simplified monitoring functions via internet connection.
• The systems support parallel connections without the need for additional communication devices.
• They are more flexible and scalable and cover a wider range of applications.
• The new cobalt-free premium generation is also characterized by a higher energy density and a more compact format, thus requiring less space.
• The increased capacity per module reduces the number of components. Combined with the improved design and a new locking mechanism, this should simplify installation and reduce installation time.
• The patented modular connector design requires no internal wiring and allows maximum flexibility and ease of use
• Lithium iron phosphate battery (LFP): Maximum safety, service life and performance
