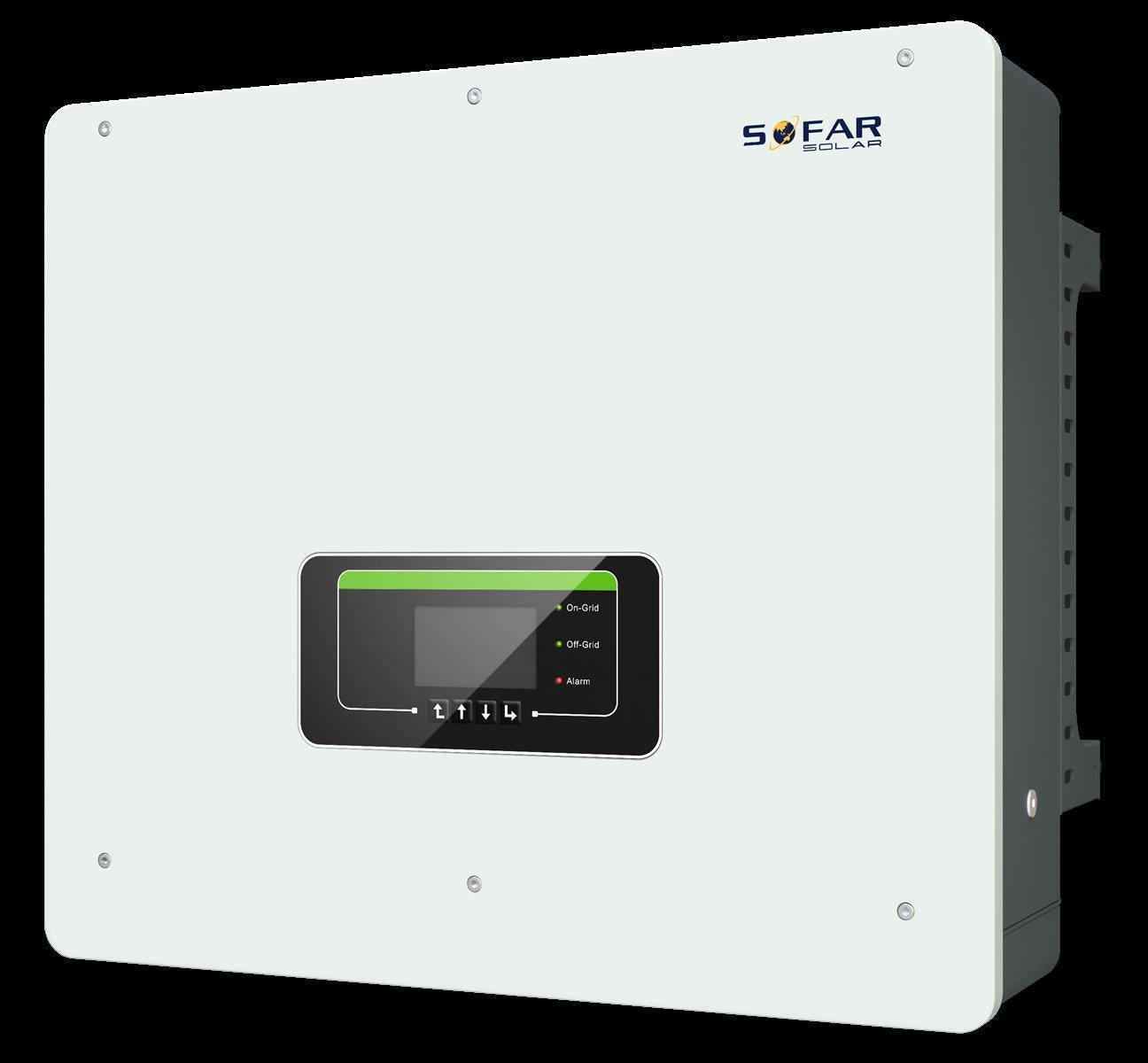

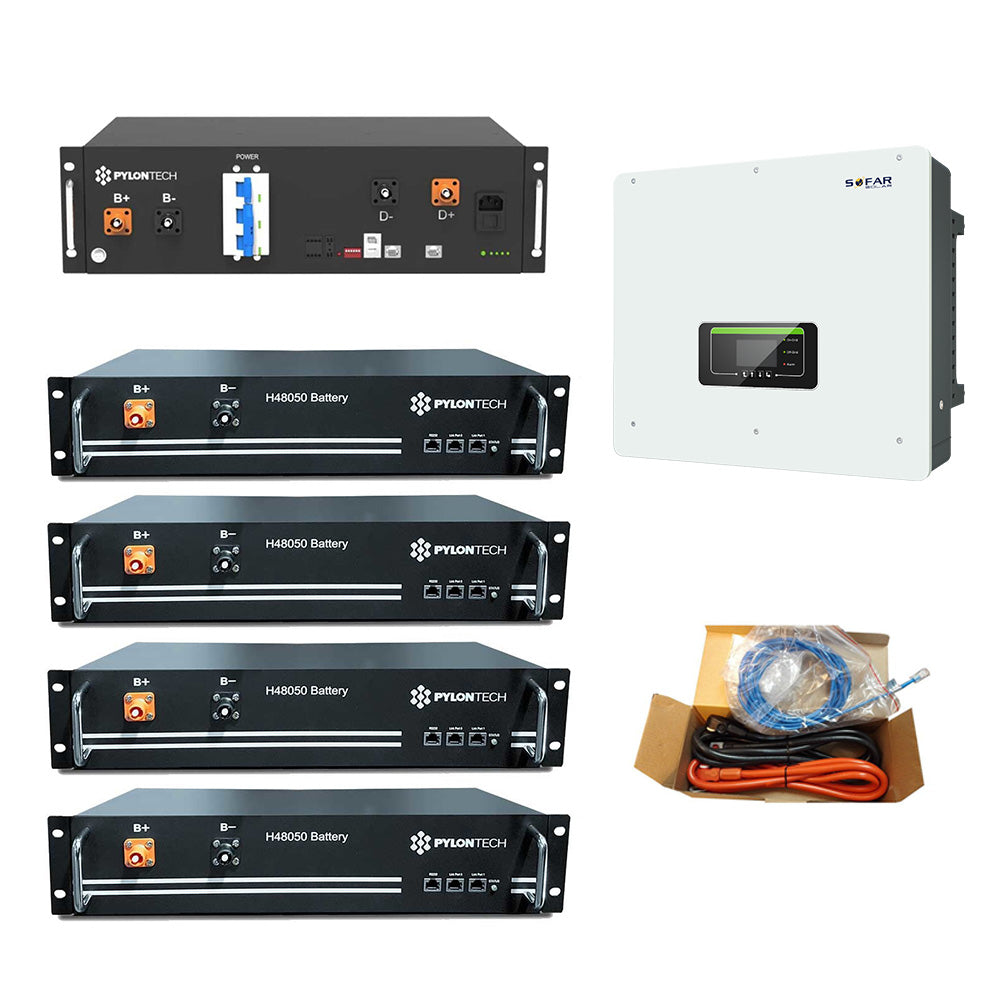

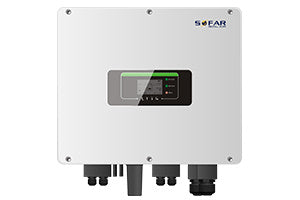

SOFAR HYD KTL 6 to 10 kW 3PH hybrid inverter

The SOFAR HYD KTL 6 to 10 kW is a 3-phase hybrid inverter that combines solar and battery inverters, energy management, and system monitoring in a single device. It is ideal for both off-grid and on-grid installations. The HYD KTL-3PH inverter can withstand short-term overloads of up to 100% of its capacity and compensates for these peaks by charging the batteries. In the event of a power outage, the inverter automatically switches to its uninterruptible power supply mode in less than 10 milliseconds.

• Increasing self-consumption rates day and night through intelligent battery storage solutions
• Battery charging with solar power
• Feeding excess solar power into the grid

Technical data

• 2 MPP trackers, flexible configuration
• APF mode, improved mains power quality
• Compatible with various lithium batteries such as Pylontech
• Easy monitoring through monitoring app
• 3-phase smart meter and DC disconnect switch incl.
• Backup power function with 100% power
• Zero feed-in mode configurable
• Weight: 33kg
• Dimensions: 571 x 515 x 264 mm
• Standard warranty: 5 years

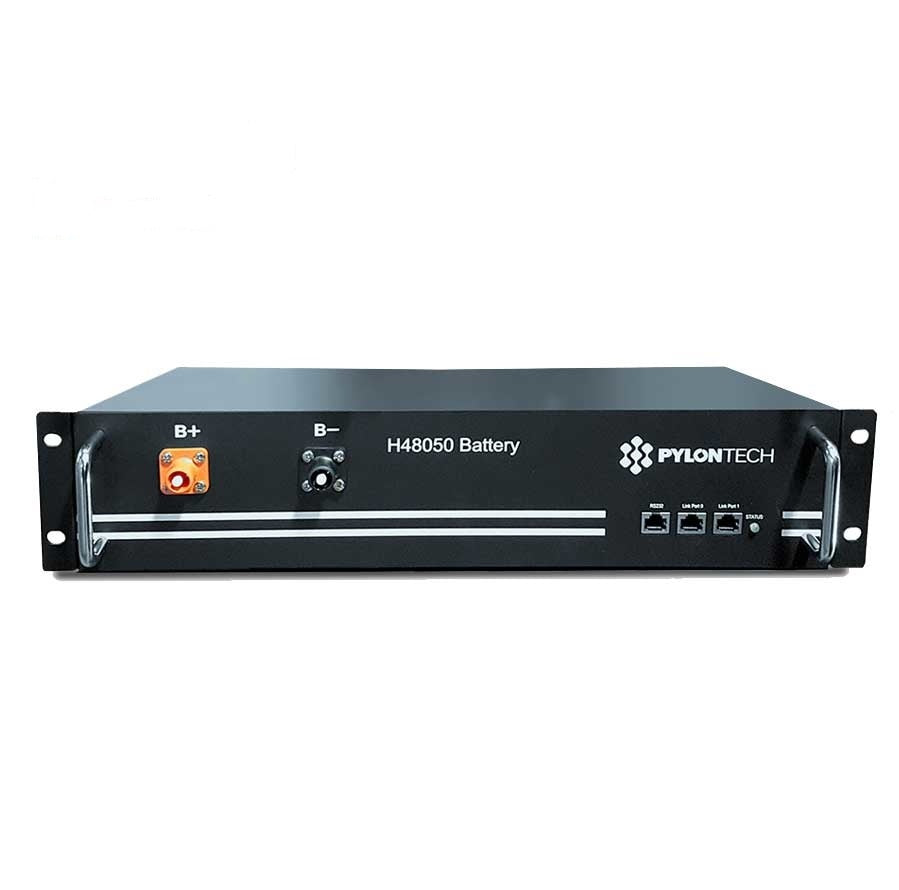

PYLONTECH H48050 HIGH VOLTAGE LI-ION BATTERY MODULE WITH 2.4 kWh EACH

Pylontech's H48050 lithium battery is the latest technological frontier for high-voltage photovoltaic storage applications.

The PylonTech H48050 2.4 kWh high voltage Li-ion solar battery module is a H ESS battery system provided by Pylontech, designed with its own lithium iron phosphate cell to ensure the highest safety value and the most promising life cycle.

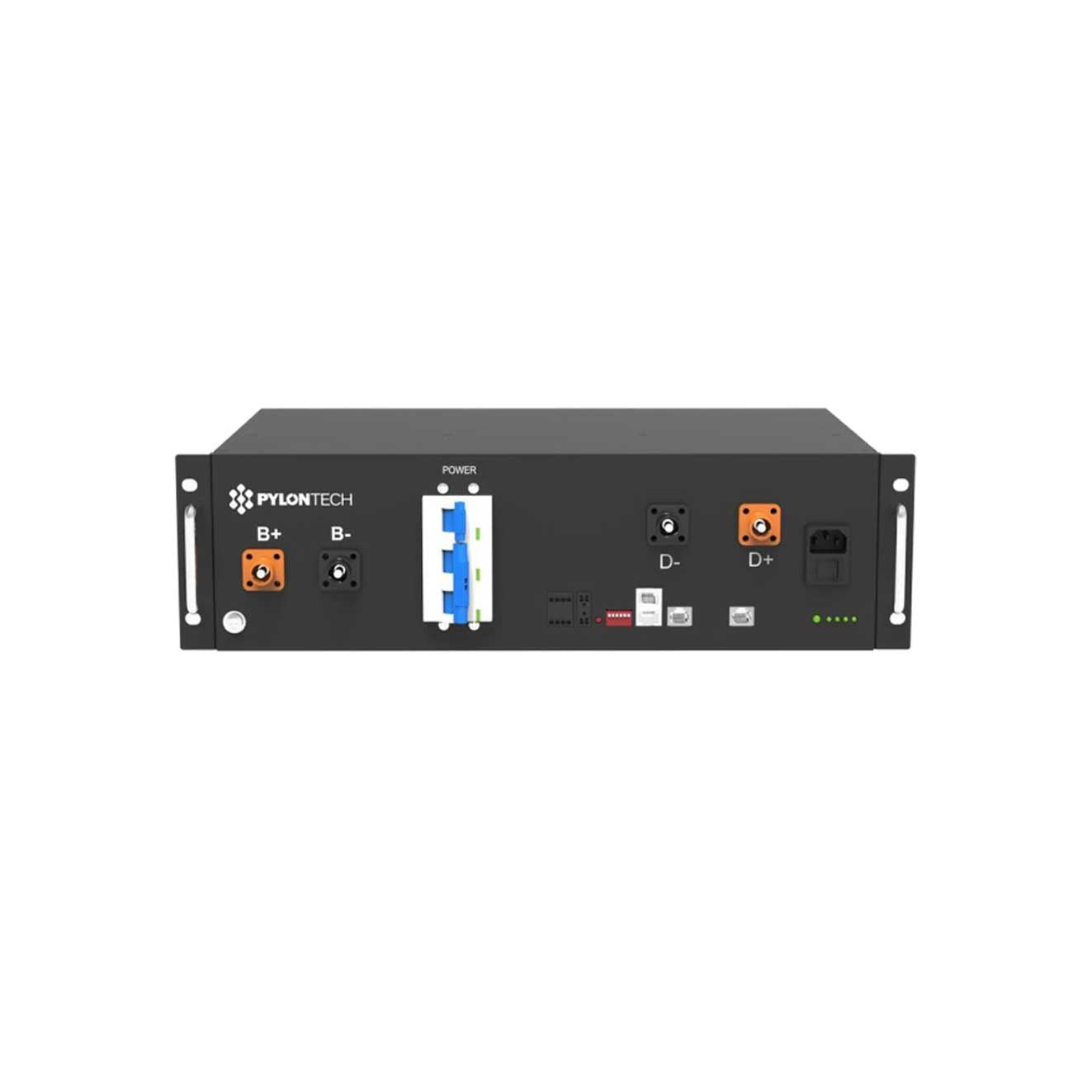

A self-developed BMS protects the cell from abnormal temperature, current, voltage, SoC and SoH.

The storage module consists of a high-performance lithium iron phosphate (LiFePo4) battery and communicates with the battery management module via the integrated communication interface. It has a storage capacity of 2.4 kWh at a nominal voltage of 48 volts . Connecting multiple modules together increases the voltage and storage capacity.

Technical data:

•  Battery type: Lithium iron phosphate (LiFePO4)
• Storage capacity (gross): 2.4 kWh
• Storage capacity (net): 1.9 kWh
• Nominal voltage: 48 V
• Max. discharge current: 100 A (2C) per 1 min
• Voltage range: 45-54 V
• Interfaces: RS485 / CAN
• IP protection class: IP 20
• Dimensions (W x H x D, mm): 442 x 390 x 100
• Weight: 24 kg
