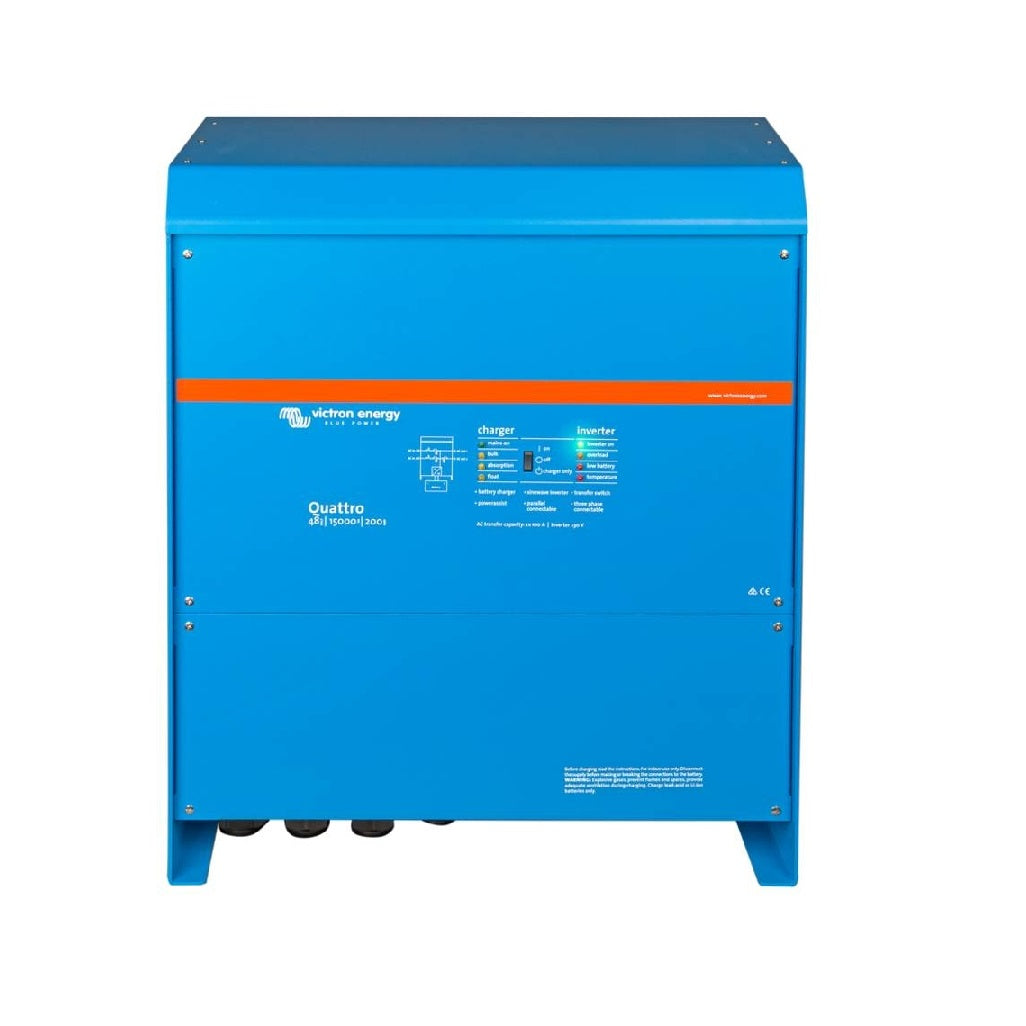

Victron Energy Quattro 48/15000/200-100/100 230V VE.Bus

The Quattro 48/15000/200-100/100 is a combination of a 48V 15000W sine wave inverter, an extremely powerful battery charger, and a transfer switch. It features two AC outputs and two AC inputs, each equipped with a 100A transfer switch. The Quattro can be conveniently connected to two independent power sources, with the Quattro automatically connecting to the active power source.

The Quattro is designed so that in the event of a power failure, etc., the main output takes over the entire power supply for all connected devices. This guarantees uninterrupted power supply , as the Quattro takes over power in a fraction of a second, so that a failure of electrical devices such as a computer is not registered. This eliminates any interruption to work. The second output only supplies power when AC power is available at one of the Quattro's inputs.

charger

The integrated and equally powerful battery charger delivers an impressive 200A, capable of charging even large batteries. The integrated 48V sine wave voltage converter converts the battery current into 230V AC. The sine wave makes it suitable for connecting sensitive electronic devices. Each AC input has a 100A transfer switch. This allows for a wide range of applications, even in grid-connected operation.

Parallel connection and 3-phase configuration

The Quattro allows up to six devices to be connected in parallel , so that, for example, six 48/15000/200 units can generate a power output of 54 kW/60 kVA or a charging current of 840 A. Three units can be connected in a 3-phase configuration. Up to six sets of three devices each can be connected in parallel.

PowerControl

The Quattro features a very powerful battery charger . It draws a large amount of power from the generator or shore power supply, and its maximum output can be adjusted using the Multi Control panel. The Quattro even takes into account other connected electronic devices and uses only the remaining power for charging. This prevents the generator or shore power connection from becoming overloaded.

PowerAssist

PowerAssist with PowerControl enables the Quattro to support alternative power sources that are too low in power. During peak loads, the Quattro ensures that low power output is bridged using battery power.

Backup system

The Quattro 48/15000 can be used in both off-grid and grid-connected PV systems, as well as in a variety of other alternative energy systems. Grid failure detection software is available.

Simple system configuration

Configuration on a single device can be completed in minutes using a DIP switch setting procedure. Parallel and three-phase systems can be configured using the VE.Bus Quick Configure and VE.Bus System Configurator software.

Monitoring options and control


The Quattro 48/15000 can be monitored and controlled both locally and remotely using a battery monitor, Multi Control Panel, Ve.Net Blue Power Panel, Color Control Panel, smartphone or tablet (Bluetooth Smart), laptop or computer (USB or RS232) or Victron Ethernet Remote, Victron Global Remote and the Color Control Panel for remote control.

Remote configuration

When systems with a Color Control Panel are connected to the Ethernet, they can be accessed and settings changed remotely.
