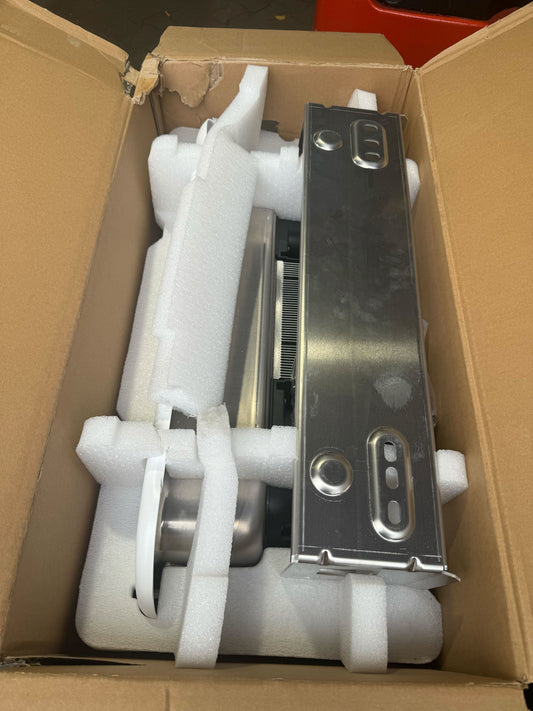

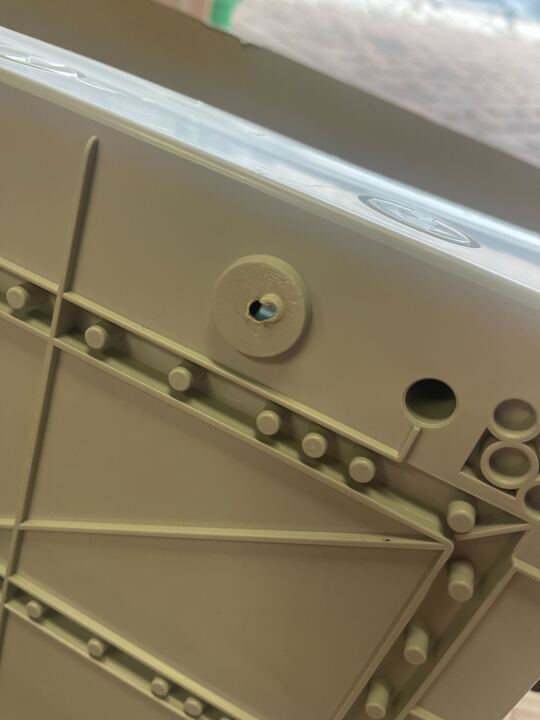

This item was briefly installed ( there is a borehole) but was not put into service.

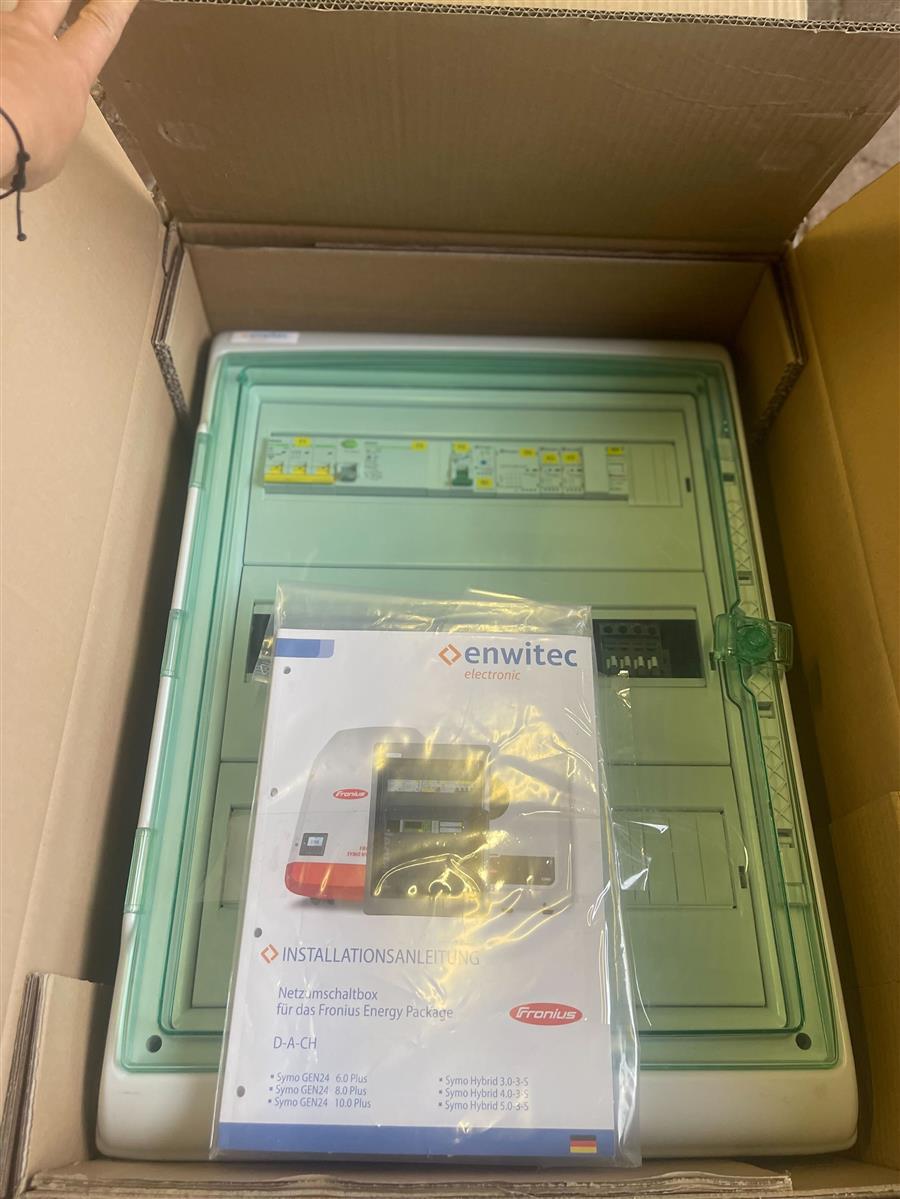

This item is new and fully functional. The original packaging may show signs of wear due to a customer return. However, the device is otherwise in pristine condition. You will receive the full manufacturer's warranty with this device.

Application for the Fronius SYMO GEN24 Plus system “Full Backup”

Technical data:

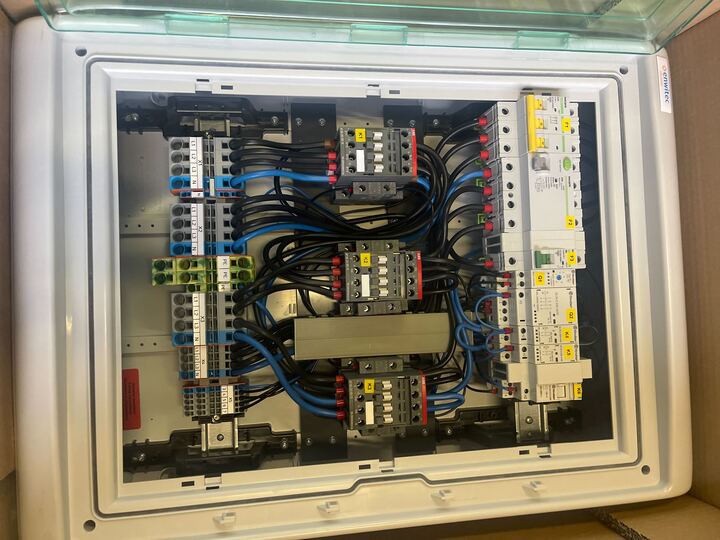

This network switching box is suitable for:

FRONIUS Symo GEN24 6.0 Plus/8.0 Plus/10.0 Plus

Mains switching box 3AC 230/400V 50Hz

-Connection fuse max. 63A

-All-pole separation - TN-S/TT network

-ATTENTION: NO TN-c network in the customer system!

In the event of a power failure, this grid switching box safely and completely disconnects the battery inverter, the PV inverter, and the connected loads from the public power grid, forming a backup power grid. Furthermore, it is all-pole, meaning it's designed for larger PV systems and features a large energy storage system.

A smart meter is not included in the network switching box and must be integrated on site due to its functionality!

Further information can be found in the following data sheets in German and English.
