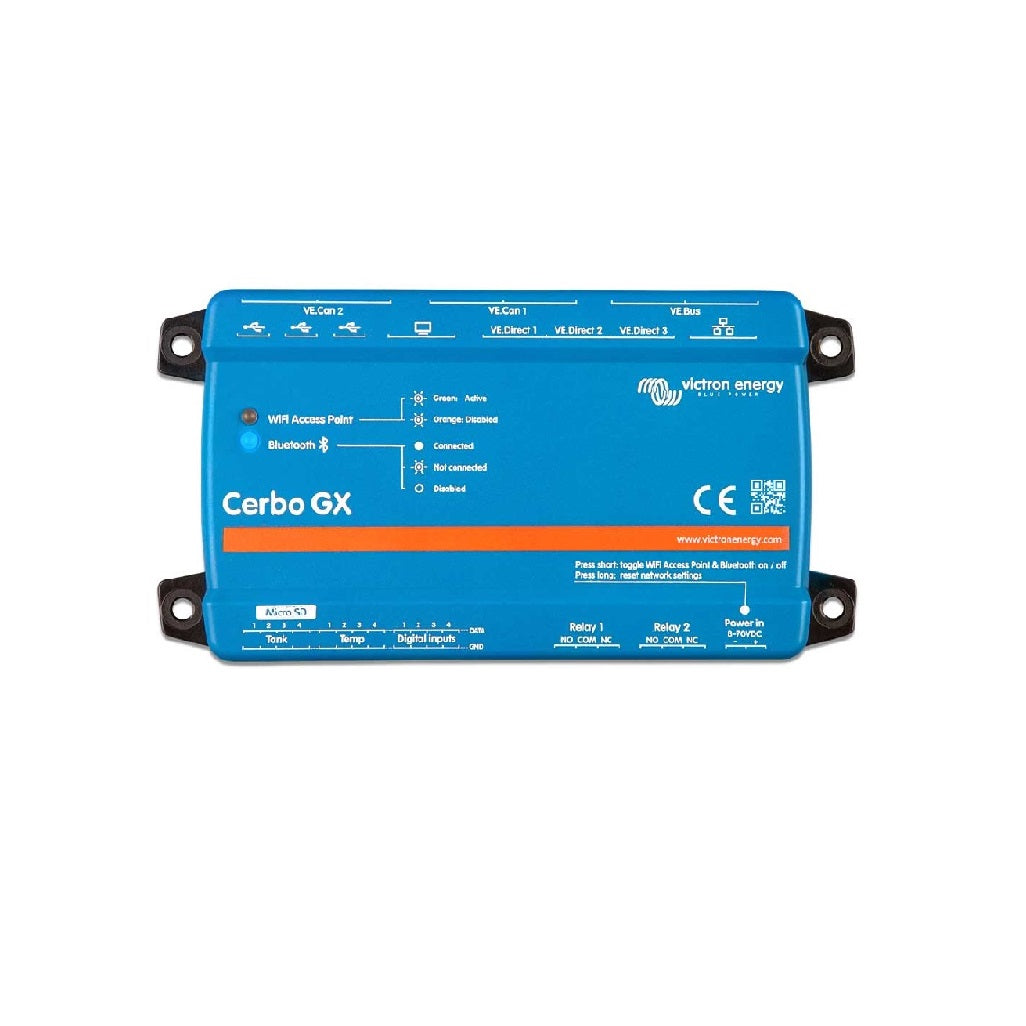

Victron Energy Cerbo GX MK2

The Victron Cerbo GX MK2 is a communication hub that monitors your PV system and all its components and maximizes its performance. The latest model in the Victron GX series offers advanced features and improved connectivity for an even smarter power supply.

Perfect system monitoring and control

With the Cerbo GX MK2 from Victron Energy you have full control everywhere :

• Monitoring of battery charge level, power consumption and energy generation from the PV system, generator or grid
• Checking tank levels and temperature measurements
• Control of the current limit for the shore power supply and the automatic start-stop generator
• Change any settings to optimize the system
• Tracking alerts
• Conducting diagnostic tests
• Remote problem solving

Flexible connection

You have 3 options to connect to the device and control your system regardless of time and place:

1. via the free Victron Remote Management (VRM) portal
2. about the Victron Energy GX Touch 50 (5-inch touchscreen display)
3. via the VictronConnect app via Bluetooth

New in Cerbo GX MK2

The Cerbo GX MK2 offers the following improvements compared to the classic Cerbo GX:

• Two fully functional VE.Can ports: The Mk2 has two VE.Can ports, one of which is isolated, unlike the classic model with one VE.Can and one BMS Can port.
• Rotation of the RJ45 sockets: The RJ45 connectors have been rotated 180 degrees to make it easier to remove the cables.
• Fully functional USB ports: All three USB ports are now fully usable, whereas previously two were for data only and one was solely for power.
• Pulse counting on digital inputs: The digital inputs now support pulse counting, which offers expanded measurement capabilities.

Versatile

The Cerbo GX MK2 is suitable for a wide range of applications :

• The device starts or stops your generator automatically or delays ignition until the end of a preset rest period (e.g. at night).
• For energy storage systems (ESS), the Victron Cerbo GX MK2 keeps backup batteries at 100% and kicks in during a power outage. The device also diverts excess solar power for self-consumption, saving you money.
• For motorhomes and emergency vehicles, it keeps vital systems reliably functioning.

Maximizing system performance

The Victron Energy Cerbo GX MK2 maximizes the performance of system components in real time and keeps them perfectly aligned. Equipped with a dual-core processor and a CAN bus port, it can support even larger systems. The new NMEA 2000-out support allows the device to be quickly integrated into any boat network.

The following connections are available:

• 4 tank connections
• 4 temperature connections
• 3 VE.Direct ports
• 3 USB ports
• 4 digital inputs
• 2 relays
• 1 Micro SD card slot

Easy assembly

The Cerbo GX MK2 meets the needs of installers. The device is easily mounted on a DIN rail (with a small DIN35 adapter, not included). The separate touchscreen (GX Touch 50) is connected via a single cable and can be screwed onto a dashboard, eliminating the need for perfect cutouts.

Downloads - Victron Energy Cerbo GX MK2

Data sheet (PDF, 134 KB)
