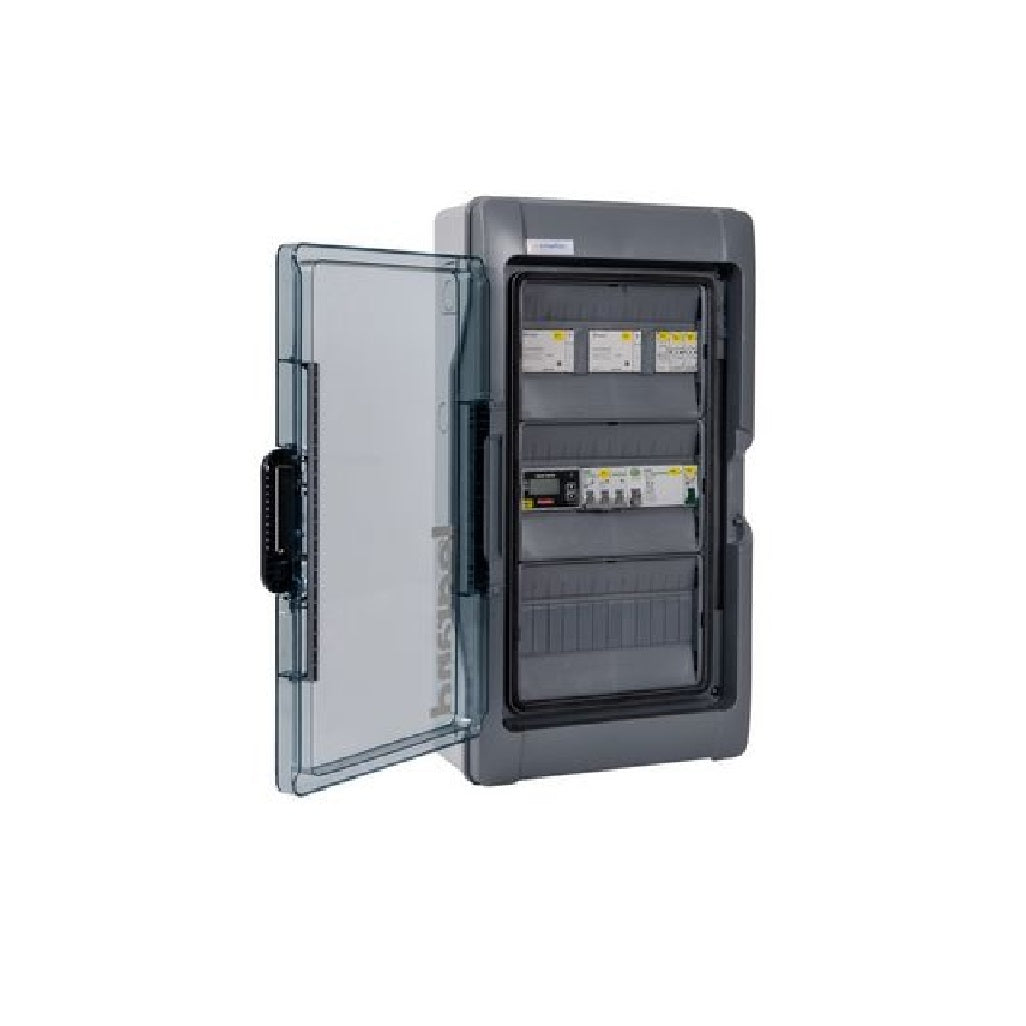

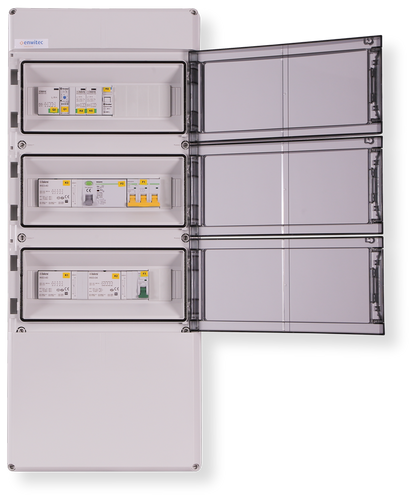

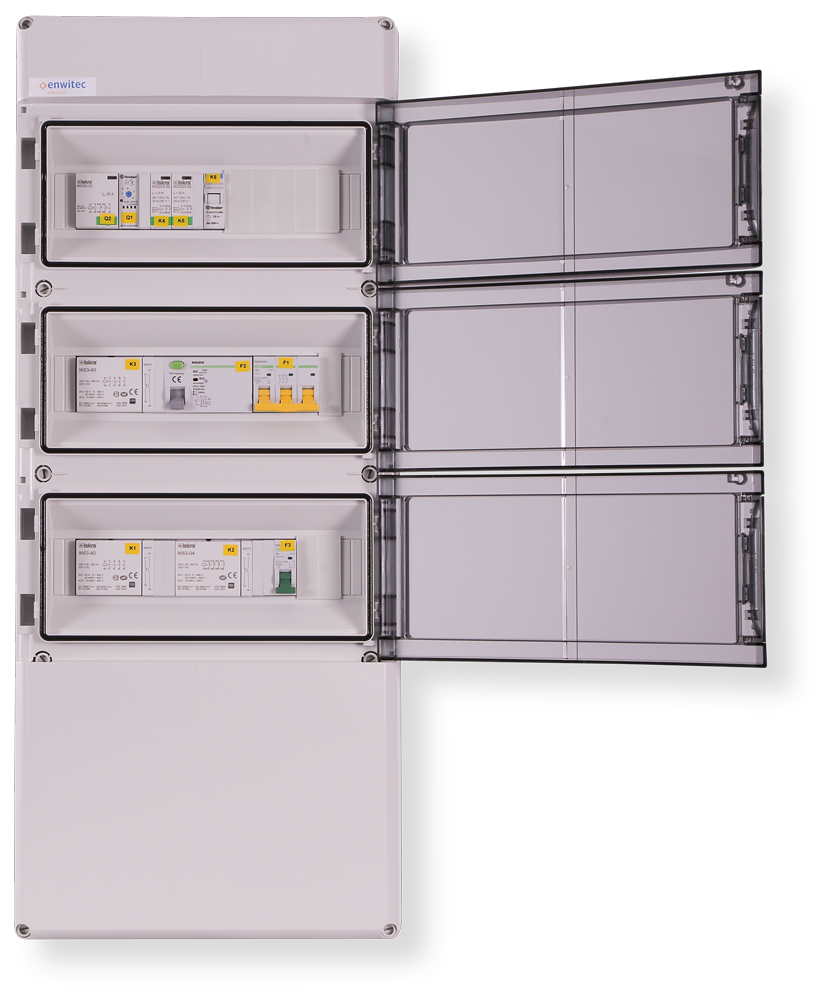

Enwitec switch box (10015613) 20KW & 30KW for the Fronius Energy Package

1. Mains switch box for Fronius Energy Package System – 20KW
2. Mains switch box for Fronius Energy Package System – 30KW

This switch box has been developed for the following battery inverters:

• Fronius Symo GEN24 6.0 Plus
• Fronius Symo GEN24 8.0 Plus
• Fronius Symo GEN 24 10.0 Plus
• Fronius Symo Hybrid 3.0-3-S
• Fronius Symo Hybrid 4.0-3-S
• Fronius Symo Hybrid 5.0-3-S

When operating the mains switching box with 30kW max. thermal throughput, the use of ventilation valves is required, which reduces the protection class to IP44.

This grid switching box safely disconnects the connected PV system and the consumer distribution from the public power grid in the event of a power failure.
At the same time, it provides the user with a backup power supply.
The switching device is delivered ready for connection and pre-tested.
This eliminates the need for installers to construct their own switching devices and assume their own warranty.

A Fronius Smart Meter 63A is already integrated.

Retrofitting a second smart meter is possible if

a) the apparent power SSymo Hybrid/GEN24 Plus < apparent power S Symo PV inverter AND
b) a limitation of the grid feed-in power (50…70% regulation) is required!

Further information can be found in the following data sheets in both German and English.
