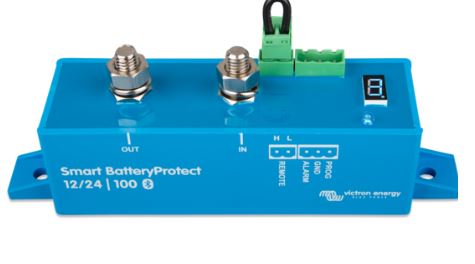

Victron Energy BatteryProtect 12/24V-100A

The Victron BatteryProtect battery monitor isolates the battery from less important loads, preventing it from being completely discharged and protecting it from damage . This also ensures that sufficient power is still available to start the engine.

The Victron Energy device is not designed to withstand reverse currents from chargers.

Highlights of the Victron Battery Protect BP-100

• automatic detection of the voltage range 12/24V
• Fast programming - setting of multiple voltages at which the BatteryProtect switches on or off
• 7-segment display - you can immediately see which settings have been selected
• Lithium-ion battery mode - Victron Battery Protect can be controlled by VE.Bus BMS
• very low power consumption - important for lithium-ion batteries , especially after shutdown due to a low voltage level
• Overvoltage protection - load is switched off when the DC voltage exceeds 16 or 32V, so that sensitive consumers are not damaged by overvoltage
• Explosion protection - MOSFET switches (no relays) and therefore no sparking

Downloads - Victron battery monitor 12/24V-100A

Data sheet (PDF, 234 KB)
