Artikelnummer: 8468

Weidmüller

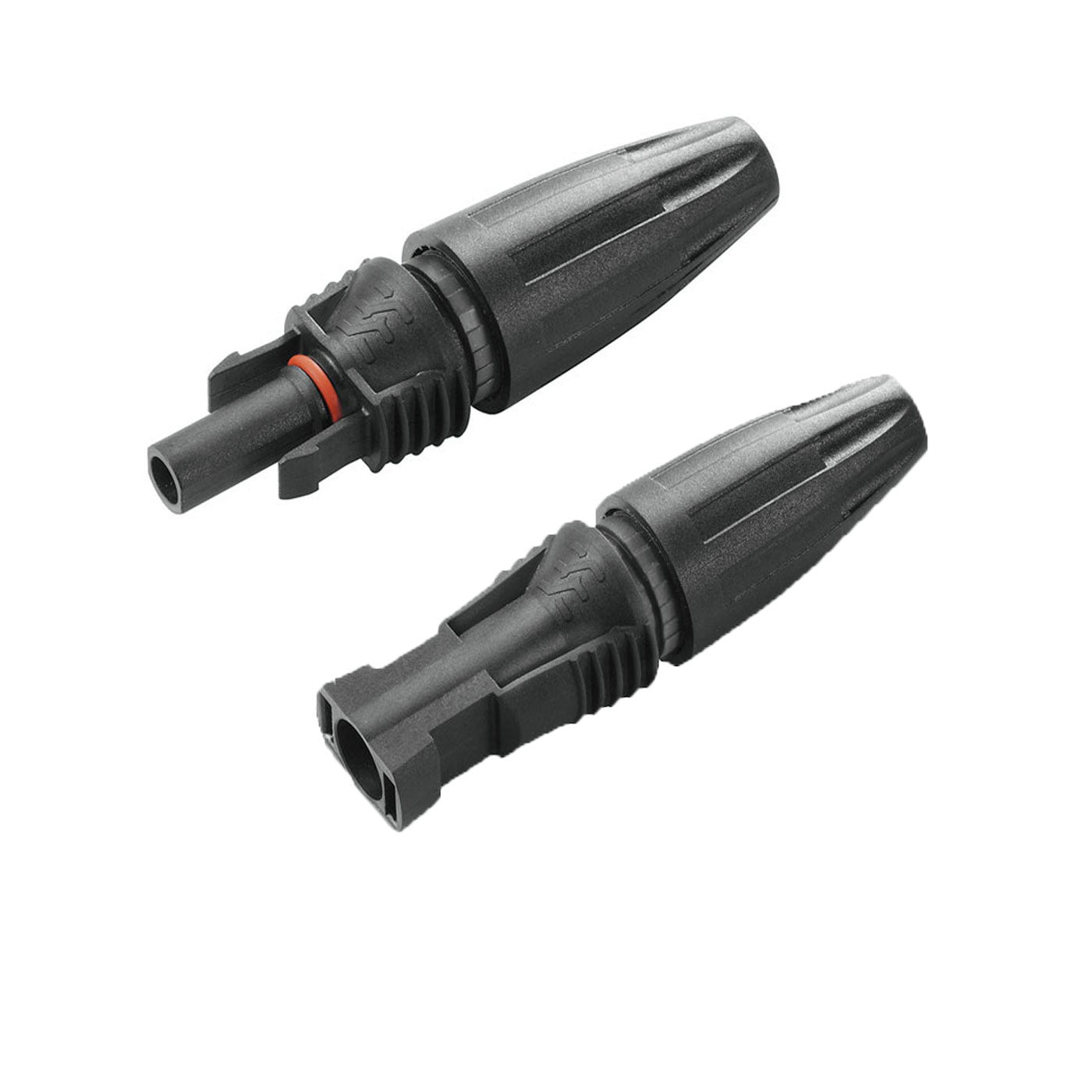

Weidmüller PV Stick Male/Female Set MC4 Crimpless (Minus/Plus)

Weidmüller PV Stick Male/Female Set MC4 Crimpless (Minus/Plus)

€12,00
€0,00 €12,00
Sale Sold out

Auf Lager

  • American Express
  • Apple Pay
  • EPS
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
View full details

Shipping costs

Shipping within Germany

  1. Free UPS parcel shipping up to 30 kg
  2. UPS parcel shipping over 30 kg: 35 €
  3. Freight forwarding (larger/multiple packages | hazardous goods such as PV storage | special dimensions | excluding solar modules)
  4. Goods value under 3500 € = 75 €
  5. Goods value under 7500 € = 125 €
  6. Goods value over 7500 € = 175 €
  7. Shipping solar modules: 175 €

You can find the total shipping costs in your shopping cart ( shipping cost calculator for many European countries ) and also before checkout after entering your address.

Shipping abroad

For shipments abroad, higher shipping costs may apply, which you can also see in the checkout for most destinations.

For deliveries to third countries, customs and import fees are usually also added.

Weidmüller MC4 tool-free connectors

Continuous operating temperature: -40 °C to +85 °C
Protection class: IP65, when closed, IP2x when open
Rated current: 30 A
Rated voltage: 1500 V DC (IEC)
Conductor connection cross-section: 4 mm² - 6 mm²
Outer cable diameter: 5.5 mm to 7.5 mm
Cable type: 2 Pfg1169/08.07, EN 50618:2014
__Contamination level: 3 (2 within the sealed area)
Approvals: TÜV Rheinland (IEC 62852)

Data sheet
