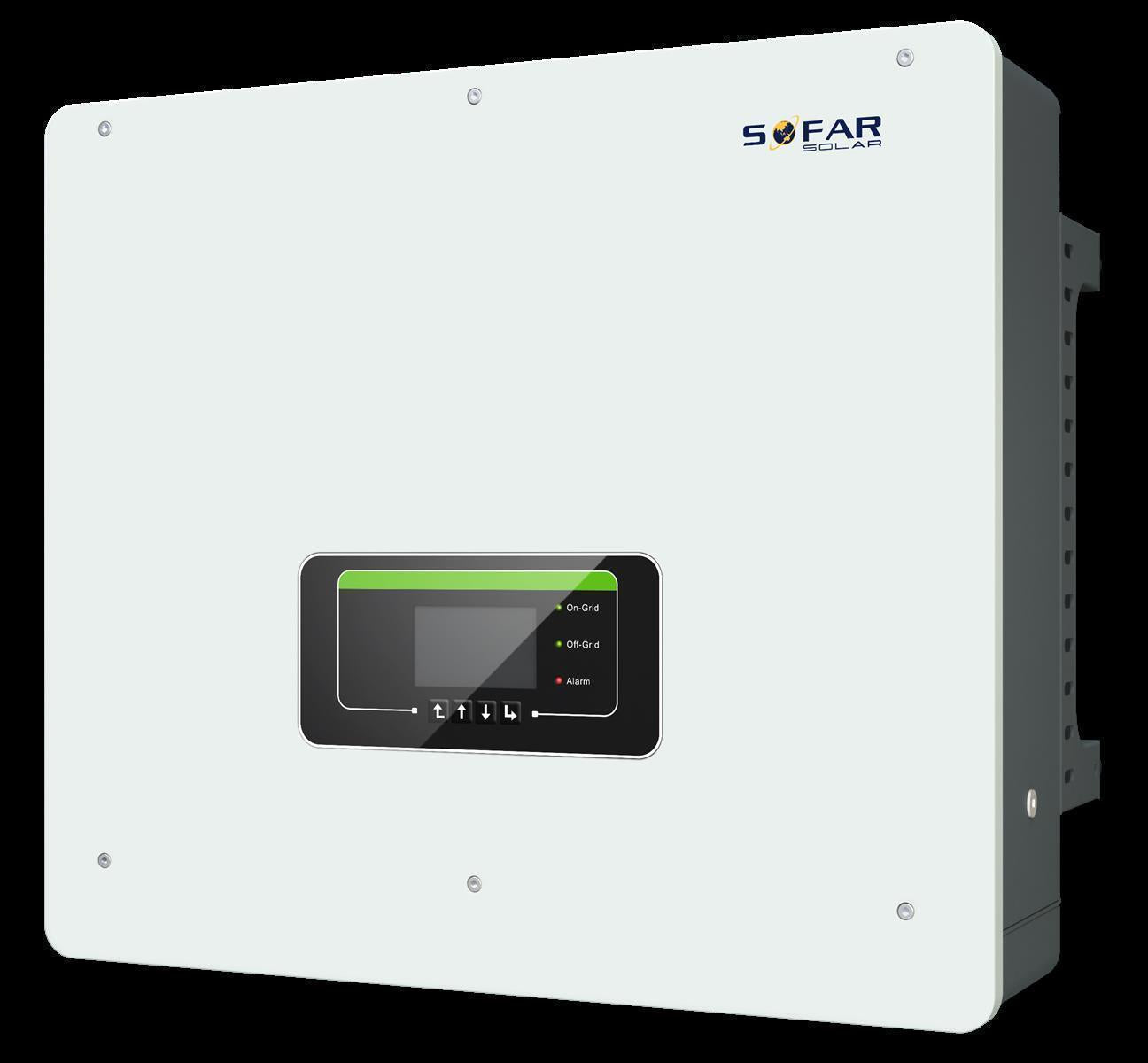

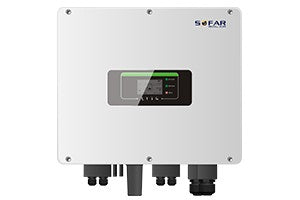

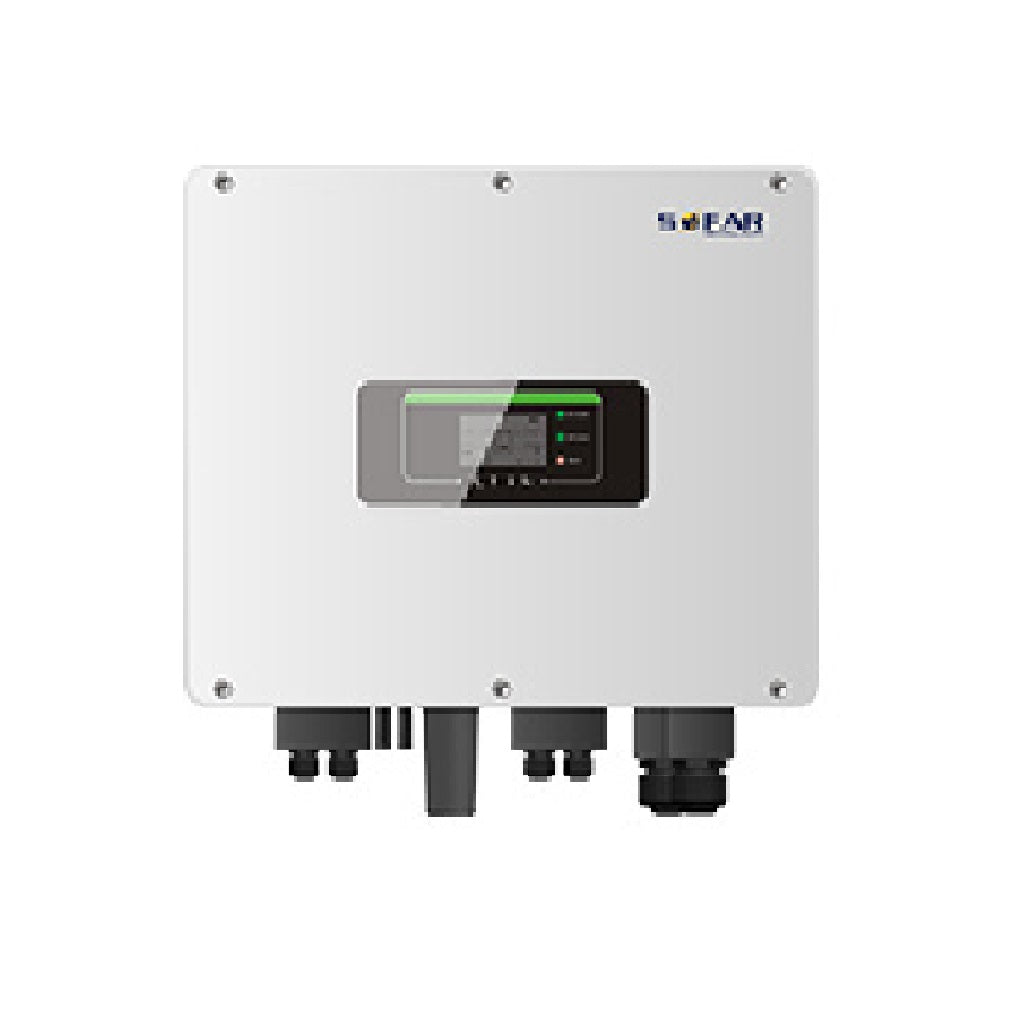

SOFAR HYD 6 to 20KTL-3PH hybrid inverter

6 - 20 kW 3-phase, compatible e.g. with the high-voltage batteries from Pylontech.

The SOFAR HYD KTL-3PH is a 3-phase hybrid inverter that combines solar and battery inverters, energy management, and system monitoring in a single device. It is ideal for both off-grid and on-grid installations. The HYD KTL-3PH inverter can withstand short-term overloads of up to 100% of its capacity and compensates for these peaks by charging the batteries. In the event of a power outage, the inverter automatically switches to its uninterruptible power supply mode in less than 10 milliseconds.

• Increasing self-consumption rates day and night through intelligent battery storage solutions
• Battery charging with solar power
• Feeding excess solar power into the grid

Installation video from SOFARSOLAR

Technical data

• 2 MPP trackers, flexible configuration
• APF mode, improved mains power quality
• Compatible with various lithium batteries such as Pylontech
• Easy monitoring through monitoring app
• 3-phase smart meter and DC disconnect switch incl.
• Emergency power function with 100% power
• Zero feed-in mode configurable
• Weight: 33-37kg
• Dimensions: 571 x 515 x 264 mm
• Standard warranty: 5 years
