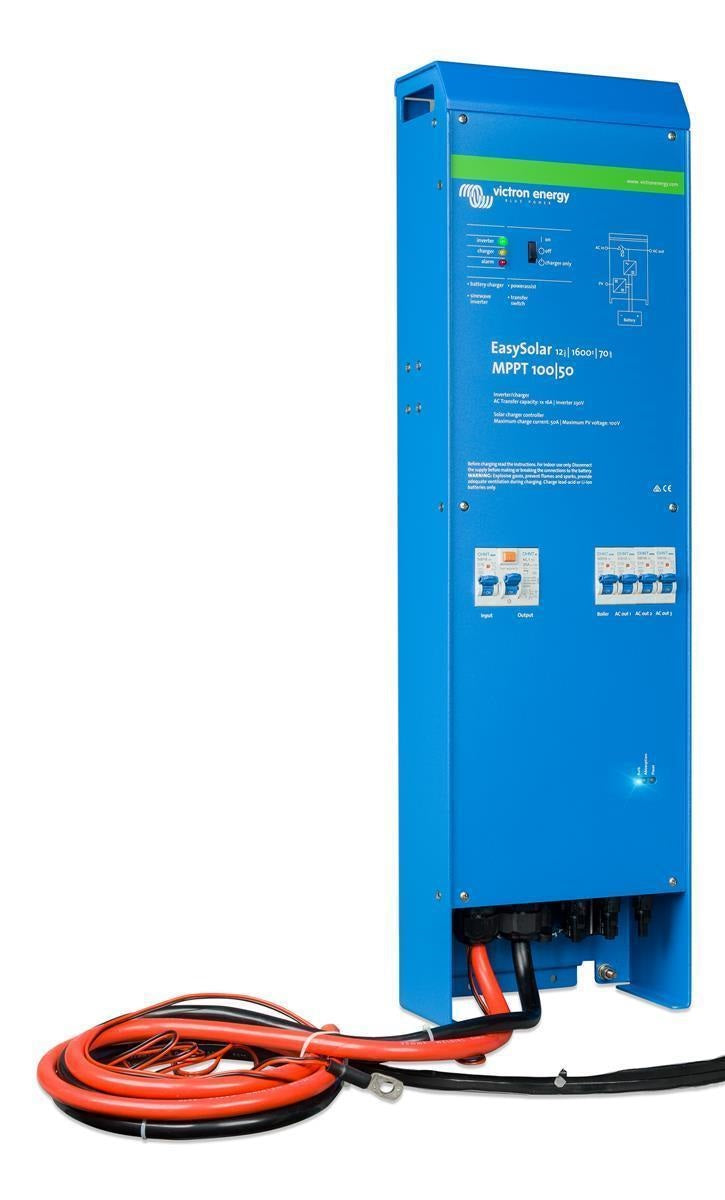

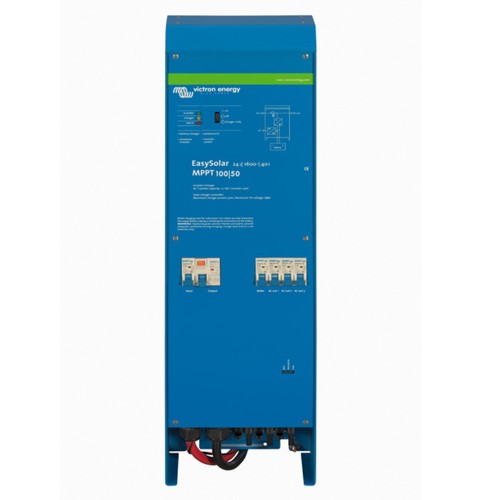

EasySolar 12V/24V/48V inverter/ solar charge controller 1600VA up to 5000V

Complete solution for solar power:
The EasySolar combines an MPPT solar charge controller, an inverter/charger and
AC power distribution in a single device.
The device is easy to install and requires little cabling.

Color Control Panel
Two notable features:
- Prioritizes battery charging by the MPPT charge controller.
- Connects to the Internet, allowing remote monitoring (VRM
website) and remote control is enabled.

AC distribution
The AC power distribution consists of a residual current device (30 mA/16 A) and four
AC outputs protected by two 10 A and two 16 A fuses.
A 16 A output is controlled by the AC input: it only switches on when
Alternating current is available.

PowerAssist
The unique PowerAssist technology prevents overloading of the network or
Generator power supply by always supplying additional power via the
Inverter is added.

Unique software for solar systems
Several software programs (wizards) are available to configure the system for different
to configure grid-connected or stand-alone applications.

https://www.victronenergy.nl/support-and-downloads/software

Models:

• EasySolar 12/1600/70-16 230V MPPT 100/50
• EasySolar 24/1600/40-16 230V MPPT 100/50
• EasySolar 24/3000/70-50 MPPT 150/70 Color Control
• EasySolar 48/5000/70-100 MPPT 150/100 Color Control
